MEDIANAV EVO REPLACE EMMC WITH SD CARD

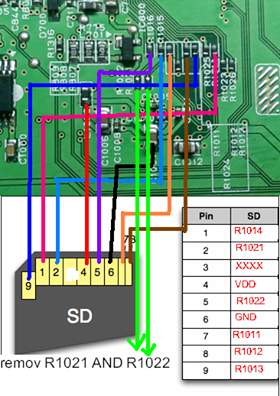

1. Jumper on pins 4-7 according to diagram 2 (pin 3-6 according to jas_pik)
2. soldering places for GND and VDD and their "side" (resistor side up / down)

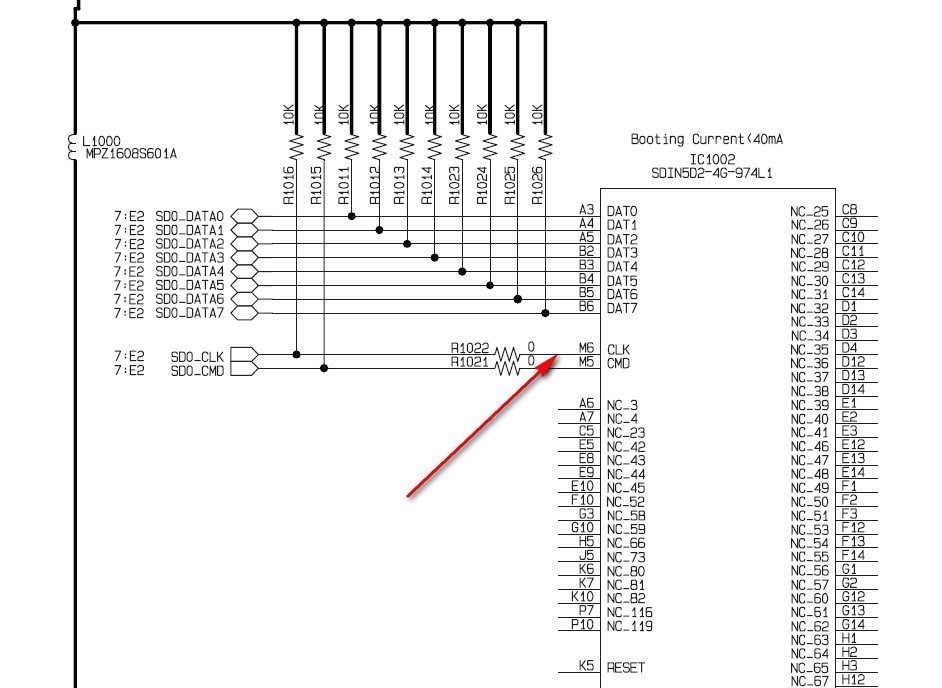

3. According to the first diagram, solder to resistors and according to 2 for soldering points

NOTE / REMOVE R1021 AND R1022
